If you're looking for the best 3D scanner for reverse engineering, you've come to the right place. Reverse engineering is all about understanding the design, structure, and function of an existing product. And for that, you need a 3D scanner that can capture even the tiniest details with utmost precision.
Before buying a 3D scanner for reverse engineering, there are a few factors that you need to consider. First, you need to think about the accuracy of the scanner. The more accurate the scanner, the better the detail you can capture on the product. Secondly, consider the scanning speed. The faster the scanner, the more scans you can take in a shorter amount of time. Lastly, consider the size and weight of the scanner. If you plan on taking it to different locations, a lighter and more compact scanner may be more convenient.
Are you tired of manually measuring every little detail of a product? Want a scanner that can do it for you in a matter of seconds? Have you been struggling to find a 3D scanner that can capture all the intricacies of the product? If so, you're in the right place. We've done the research and compiled a list of the best 3D scanners for reverse engineering to make your life easier. Keep reading to find out what we recommend.
10 Best 3D Scanner For Reverse Engineering
| # | Product Image | Product Name | Product Notes | Check Price |
|---|---|---|---|---|
|
1
|
 |
The product is ideal for high-quality 3D scanning and design with advanced software, fast scan speed, and large scan field of view.
|
|
|
|
2
|
 |
The product is ideal for reverse engineering, manufacturing, design, art, medical, and education purposes with high resolution scanning capabilities.
|
|
|
|
3
|
 |
This product is ideal for reverse engineering, healthcare, manufacturing, research, art, and design with high accuracy and resolution.
|
|
|
|
4
|
 |
The product is ideal for creating high-precision 3D scans quickly and efficiently, suitable for industries such as 3D printing.
|
|
|
|
5
|
 |
It is ideal for creating highly detailed 3D scans with color, perfect for manufacturing, reverse engineering, and product design.
|
|
|
|
6
|
 |
The 3D scanner is ideal for reverse engineering, manufacturing, design, art, medical and education purposes with high precision.
|
|
|
|
7
|
 |
This product is ideal for reverse engineering, healthcare, manufacturing, research, art and design with high accuracy and resolution 3D scanning.
|
|
|
|
8
|
 |
The product is ideal for reverse engineering, manufacturing, and art applications with high accuracy and resolution.
|
|
|
|
9
|
 |
The product is ideal for reverse engineering, healthcare, manufacturing, research, art and design with high accuracy and resolution scanning capabilities.
|
|
|
|
10
|
 |
The product is ideal for reverse engineering, healthcare, manufacturing, research, art and design applications.
|
|
1. Einscan H: 3d Scanning Excellence In Hand.
The Einscan H is a cutting-edge 3D scanner that integrates LED structured light and infrared light into one device. This hybrid structure light source technology provides high-quality 3D data with full color in just minutes.
One of the standout features of the Einscan H is its three scan modes: Standard Scan, Body Scan, and Face Scan. The Face Scan mode offers more comfortability, as it uses an invisible scan light for facial scanning. This mode is especially useful for capturing fine details such as human hair. The Body Scan mode provides a reliable solution for scanning dark-colored objects and acquiring human hair data.
The Einscan H is also capable of capturing fine details with impressive high resolution up to 0.25mm. It can capture the full geometry of objects such as artwork or furniture with fine details. The high accuracy of scanned data up to 0.05mm and volumetric accuracy of 0.1mm/m improves the precision of 3D modeling in a dense points cloud or polygon meshes.
In addition to its accuracy, the Einscan H boasts a fast scan speed of up to 1,200,000 points/s (55FPS). The optimized alignment algorithm enables efficient alignment despite small movements of the scanned object or person.
The package comes with everything you need to get started, including the Einscan H 3D scanner, markers, power adaptor, calibration board, position paper, connection cable (USB, DC IN), USB drive, and plug.
2. Einscan Pro 2x: Premium 3d Scanner With Hd Alignment.
Introducing the highly anticipated UMAX Premium Edition Handheld 3D Scanner, now available for purchase in 2022. This product is sold and shipped directly from UMAX, a trusted and reliable manufacturer of cutting-edge technology.
This scanner is designed specifically for those in need of scanning small to medium-sized objects, ranging from one inch to five feet. It boasts a range of output formats, including STL, OBJ, PLY, ASC, P3, and 3MF, making it compatible with a variety of software and design programs.
One of the standout features of this scanner is its impressive accuracy. In handheld mode, it can achieve an accuracy of 0.045mm, while in fixed mode with a turntable, it can achieve a staggering 0.04mm accuracy. These figures have been factory tested and are in accordance with VDI/VDE 2634 standards, ensuring that you can trust the results you obtain.
The UMAX Premium Edition Handheld 3D Scanner is also capable of capturing fine details, with a best resolution of up to 0.2mm in handheld mode and 0.16mm in fixed mode. This allows for high-quality 3D data modeling, making it an ideal tool for those in the design and engineering industries.
The scanner also features versatile scan and align modes, providing users with greater flexibility and control over their scanning process. The brand-new user interface and workflow of the scanning software, EXSCAN PRO, is designed to be intuitive and user-friendly.
To further enhance your design capabilities, this scanner comes bundled with Solid Edge CAD design software, allowing you to easily create 3D models and designs from your scanned data.
3. Einscan Pro Hd 3d Scanner Kit
The Einscan Pro HD 3D Scanner with Turntable & Tripod is the ultimate solution for scanning both small and large objects with ease. It provides high resolution and accuracy in handheld HD scanning, with a minimum point distance of 0.2mm. This means that the scanner can capture fine details without the need for markers, making it incredibly user-friendly.
One of the most impressive features of this scanner is its ability to handle dark or casting metal surfaces with less limitations. This eliminates the need for powder or spraying on dark objects, making the scanning process faster and more efficient.
The Einscan Pro HD 3D Scanner also delivers high accuracy for high-quality 3D modeling, with an accuracy of up to 0.04mm in Fixed Scan Mode. This makes it ideal for creating detailed 3D models for a variety of applications.
In the package, you will find the Einscan Pro HD handheld scanner, Turntable & Tripod, calibration tools, 5000 pcs markers, power adapter, USB data drive, Solid Edge software license, and one blue model Aesub spray. All of these items are designed to help you get the most out of your 3D scanning experience.

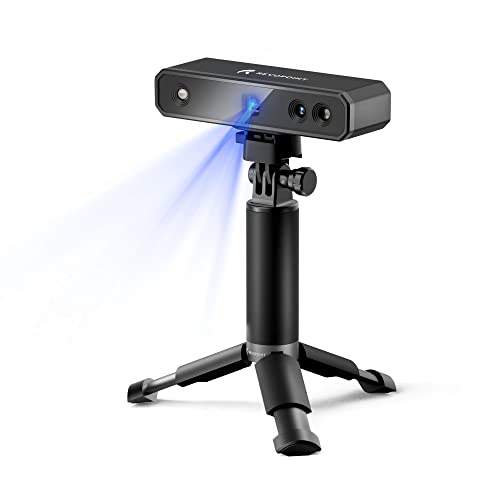

4. Revopoint Mini 3d Scanner With Turntable & Tripod
The Revopoint MINI 3D scanner is a high-precision scanning tool that can accurately scan and model even the tiniest parts of an object with 0.02mm single-frame precision. With its versatile scanning scenarios, it is an essential tool for designers, engineers, makers, medical and scientific research workers.
The MINI's intelligent algorithms and precision scanning allow it to be used for a wide range of applications, including reverse engineering, medical modeling, industrial parts repair, jewelry design, cataloging cultural relics, and many more things.
Weighing only 160g, the Revopoint MINI is portable and easy to use. The plug-and-play system requires only one USB cable for charging and data transfer, and the Revo Scan app on your computer or smartphone allows for quick and effective scanning of objects.
The MINI's scanning speed of up to 10 frames per second allows for smooth movement when scanning objects, and its integrated proprietary chip enables the 3D scanner to directly output 3D data for an effortless and stable scanning experience. With the help of intelligent algorithms, the MINI can significantly reduce stitching errors in successive scanning.
The Revopoint MINI 3D scanner uses industrial-grade blue light technology to project ultra-high-resolution structured light, making it better for scanning in ambient light. The class 1 blue light used in the MINI is entirely safe for scanning skin but may cause discomfort if shone in the eyes.
Whether you need to scan jewelry, coins, industrial spare parts, or other objects, the Revopoint MINI 3D scanner is the perfect tool for obtaining a high-accuracy 3D model ready for 3D printing or design work. With its precision scanning, versatile applications, and portable design, the MINI is a must-have for anyone looking to create high-quality 3D models.
5. 2021 Einscan Pro 2x Multi-Functional 3d Scanner With Color Pack And Tripod & Turntable
Introducing the new Scanning Software EXSCAN PRO with a brand-new UI and workflow, paired with the Solid Edge SHINING 3D Edition – a powerful reverse engineering design tool from SIEMENS PLM Software. This package provides high accuracy and exceptional compatibility, making it an ideal choice for designers, manufacturers, and engineers alike.
The EinScan Pro 2X handheld 3D Scanner boasts a single scan accuracy under Fixed Scan without Turntable Mode of up to 0.04mm. Additionally, when using markers, the volumetric accuracy under handheld scanning modes is up to 0.05mm+0.3mm/m, ensuring that every detail is captured with precision.
With the minimum resolution of up to 0.2mm under Handheld Rapid Scan and Handheld HD Scan modes, the EinScan Pro 2X can catch even the finest details, generating high-resolution 3D data that can be used for a variety of applications.
The EinScan Pro 2X is highly compatible with most mainstream software packages on the market and outputs standard file formats such as STL, OBJ, PLY, ASC, and P3 (global markers file). By saving watertight models, the scanner seamlessly connects to 3D printers for 3D printing, ensuring a smooth and efficient workflow for professionals.
The package includes an Industrial Pack, which consists of a tripod and turntable, a Color Pack Camera, a USB 3.0 cable, a SolidEdge Shining3D Version CAD Software Dongle drive, a USB drive, a Calibration board & Stand, a pack of marker dots, a Phone Screen mount, and a Power cord. With this comprehensive package, professionals can easily create high-quality 3D scans and models while enjoying the convenience of a complete set of accessories.

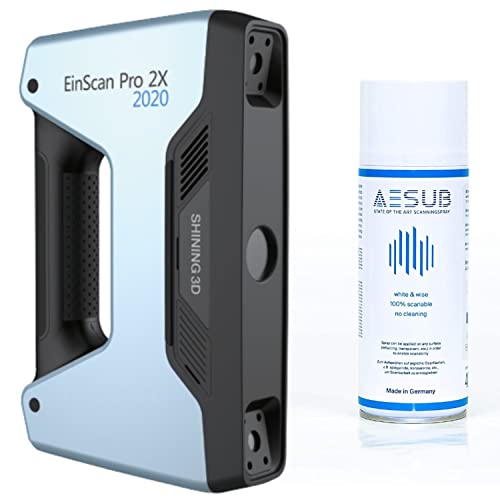

6. Einscan Pro 2x: High-Def 3d Scanning Genius.
As an authorized distributor of Shining 3D EinScan products, Go3DPro is proud to offer the EinScan Pro 2X 2020 scanner. This next-generation model is faster and more accurate than its predecessor, making it the perfect tool for high-quality 3D modeling.
Whether scanning small or medium-sized objects ranging from 1 inch to 5 feet, the EinScan Pro 2X 2020 is versatile and efficient. With a variety of output formats including STL, OBJ, PLY, ASC, P3, and 3MF, this scanner is adaptable to a wide range of needs.
The EinScan Pro 2X 2020 boasts impressive accuracy, with 0.045mm in Handheld mode and 0.04mm in Fixed mode with Turntable. This level of precision meets factory tested accuracy according to VDI/VDE 2634 standards. Additionally, the scanner can capture fine details with the best resolution up to 0.2mm in Handheld mode and 0.16mm in Fixed mode, resulting in high-quality 3D data modeling.
The package includes everything needed to start scanning right away, including a handheld 3D scanner, USB 3.0 cable, SolidEdge Shining3D Version CAD software, Rapid Registration module, calibration board, and pack of adhesive reflective marker dots.
As an added bonus, every order from Go3DPro includes a one-year warranty from Shining 3D and free expedited shipping, ensuring that customers receive their product as quickly as possible without worry. With all of these benefits, the EinScan Pro 2X 2020 is an excellent investment for anyone in need of high-quality, accurate 3D scanning technology.

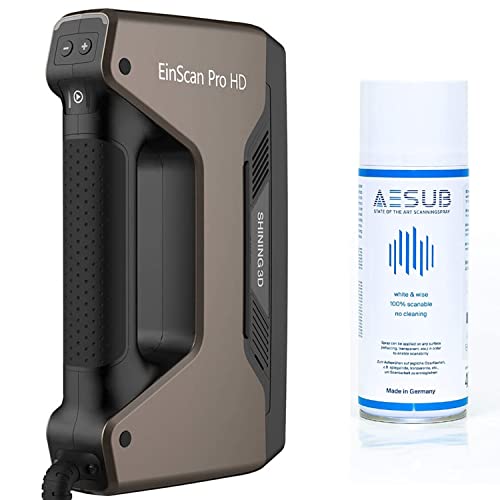

7. Einscan Pro Hd: Versatile 3d Scanner For All.
The 2023 Latest Version of the Einscan Pro HD handheld scanner is an impressive tool that provides high resolution and accuracy for fine details. With a minimum point distance of 0.2mm, it is easy to capture even the smallest details without the use of markers.
One of the standout features of the Einscan Pro HD is its ability to handle dark or casting metal surfaces with fewer limitations. This means no more need for powder or spraying on dark objects, making the scanning process much more efficient and streamlined.
In addition to being able to handle difficult surfaces, the Einscan Pro HD offers fast scan speeds for high efficiency. Under handheld scan mode, it can scan up to 3,000,000 points per second, and less than 0.5 seconds for every single frame in Fixed Scan Mode.
The Einscan Pro HD also delivers high accuracy for high-quality 3D modeling, with an accuracy of up to 0.04mm in Fixed Scan Mode.
The package includes the Einscan Pro HD handheld scanner, calibration tools, 5000 pcs markers, power adapter, USB data drive, and Solid Edge software, providing everything needed to get started with 3D scanning right out of the box.
For those in need of a reliable and efficient scanner, the Einscan Pro HD is an excellent choice. It is fast, accurate, and easy to use, making it the perfect tool for professionals and hobbyists alike. Plus, with a two-year warranty and fast shipping from UMAX, the official authorized Einscan distributor, customers can feel confident in their purchase.
8. Shining3d Handheld 3d Scanner With Industrial Pack.
Go3DPro, an authorized distributor of Shining 3D EinScan products, offers expedited shipping for every order placed within the same or next business day at no extra cost.
The EinScan Pro HD Handheld 3D Scanner is a high-resolution scanner that provides impressive accuracy with a minimum point distance of 0.2mm. It is capable of capturing fine details without the need for markers. The scanner is also designed to handle dark or casting metal surfaces with minimal limitations.
The scanner offers four scanning modes with various optional accessories that allow for single shot scan accuracy ranging from 0.04mm to 0.1mm depending on the scanning mode. Handheld HD Scan has a scan speed of 10 frames/s and 3,000,000 points/s while Handheld Rapid Scan has a scan speed of 30 frames/s and 1,500,000 points/s.
The package includes the EinScan Pro HD Handheld 3D Scanner, an industrial pack consisting of tripod and turntable, SolidEdge Shining3D Edition CAD software, scanning software (ExScan Pro), a calibration board, and a pack of marker dots (5000 pcs).
9. Proscan Hd: Versatile Handheld 3d Scanner.
Go3DPro is an authorized distributor of Shining 3D EinScan products and offers a 2-year warranty from the seller. They prioritize their customers' convenience by shipping every order on the same or next business day, with free expedited shipping included.
This handheld 3D scanner supports four scanning modes with optional accessories, providing flexibility to suit various scanning needs. With single-shot scan accuracy ranging from 0.04mm to 0.1mm, depending on the scanning mode, every detail is captured with precision.
In terms of scan speed, the Handheld HD Scan mode can capture 10 frames per second with 3,000,000 points per second, while the Handheld Rapid Scan mode can capture 30 frames per second with 1,500,000 points per second. These scan modes allow for efficient and fast scanning of objects.
The single scan range for this scanner is 209*160mm-310*240mm, while the working distance is 510mm. This means that this 3D scanner can capture a wide range of object sizes with ease.
The package includes the EinScan Pro HD handheld 3D scanner, a USB 3.0 cable, SolidEdge Shining3D Version CAD software, a Rapid Registration module, a Calibration board, and a pack of adhesive reflective marker dots. This complete package provides everything needed to start scanning right away.
10. Einscan Pro: Ultra 3d Scanning For All.
Introducing the premium edition of the Einscan line – the Einscan Pro HD handheld 3D Scanner. This exceptional device boasts impressive versatility and powerful optimizations that come together to provide the ultimate high-efficiency and professional-grade 3D scanning experience.
One of the most outstanding features of the Einscan Pro HD is its impressive high resolution for fine details. With a minimum point distance of 0.2mm, this device can capture even the most intricate details with ease, without the need for markers.
Moreover, the Einscan Pro HD offers outstanding single shot accuracy, ranging from 0.04mm to 0.1mm, depending on the scanning mode selected. The device comes with four scanning modes to choose from, and a range of optional accessories to enhance the scanning experience further.
With the Einscan Pro HD, users can handle dark or casting metal surfaces with less limitations, thanks to its advanced scanning technology. In handheld mode, the device can scan at a fast speed of up to 3,000,000 points per second, making it an ideal option for large scale projects.
The package includes the Einscan Pro HD handheld 3D Scanner, a USB 3.0 cable, a calibration board, and a power adapter kit. Additionally, the package comes with 5000pcs Pack Marker Dots, designed to ensure that users have everything they need for a seamless scanning experience.
Finally, the Einscan Pro HD comes with Solid Edge CAD Software, which provides users with a powerful toolset for creating, editing, and manipulating 3D models. This feature-rich software is a valuable addition that enhances the overall scanning experience.
Best 3D Scanner For Reverse Engineering FAQs
Are there any 3D scanning technologies that are particularly well-suited for reverse engineering?
Yes, there are several 3D scanning technologies that are well-suited for reverse engineering applications. One of the most common is structured light scanning, which uses a projector to cast a pattern of light onto an object and a camera to capture the distortion of the pattern caused by the object's surface. This technology is known for its high accuracy and speed, making it ideal for capturing complex geometries and intricate details.
Another popular technology is laser scanning, which uses a laser to measure the distance between the scanner and the object's surface. Laser scanners are capable of capturing high levels of detail and can be used to create highly accurate digital models of physical objects.
In addition to these technologies, photogrammetry and CT scanning can also be used for reverse engineering applications. Photogrammetry involves capturing multiple images of an object from different angles and using software to create a 3D model, while CT scanning uses X-rays to create a detailed 3D model of an object's interior and exterior.
Ultimately, the choice of 3D scanning technology will depend on the specific requirements of the reverse engineering project, such as the size and complexity of the object being scanned and the level of accuracy required.
Are there any notable examples of companies or industries that have successfully used 3D scanning for reverse engineering purposes?
Yes, there are several notable examples of companies and industries that have successfully used 3D scanning for reverse engineering purposes. One of the most prominent examples is the automotive industry, where 3D scanning is used extensively to create digital models of existing parts and components. This allows manufacturers to quickly and accurately reproduce these parts, which can be especially useful for older or hard-to-find components.
Another industry that has seen success with 3D scanning for reverse engineering is the aerospace industry. By using 3D scanning to create digital models of existing aircraft components, manufacturers can more easily design and produce replacement parts as needed. This can be especially important for maintaining older aircraft, where replacement parts may no longer be readily available.
Other notable examples of industries that have used 3D scanning for reverse engineering include the medical industry, where 3D scanning can be used to create custom prosthetics and implants, and the consumer goods industry, where 3D scanning can be used to create digital models of existing products for design and manufacturing purposes.
Overall, 3D scanning has proven to be a valuable tool for reverse engineering across a wide range of industries.
How easy is it to use the best 3D scanners for reverse engineering, and what kind of software is typically required?
The ease of use of the best 3D scanners for reverse engineering varies depending on the scanner's complexity and the user's experience. However, most modern 3D scanners come with user-friendly interfaces and detailed user manuals, making it relatively easy to operate them. Some scanners even offer tutorials and online resources to help users get started.
In terms of software, 3D scanning software is typically required to process and manipulate the captured data. The type of software required may vary depending on the scanner and the desired output. Some scanners come with their own proprietary software, while others may require third-party software.
For reverse engineering, CAD (Computer-Aided Design) software is typically required to convert the scanned data into a usable design file. There are many CAD software options available, including both free and paid options. Some popular CAD software options include SolidWorks, AutoCAD, and Fusion 360.
Overall, while there may be a learning curve to using 3D scanners and associated software, the process has become increasingly accessible in recent years with the development of user-friendly interfaces and online resources.
How important is the resolution of a 3D scanner when it comes to reverse engineering?
The resolution of a 3D scanner is extremely important when it comes to reverse engineering. In fact, it is one of the most critical factors that determine the accuracy and precision of the end result. The resolution refers to the level of detail that the scanner can capture in an object. The higher the resolution, the more detailed and precise the resulting 3D model will be.
In reverse engineering, the goal is to create a digital model of an existing physical object. This requires capturing all the intricate details and geometric features of the object. If the resolution of the 3D scanner is too low, the resulting model will not be an accurate representation of the original object. This can lead to errors in the manufacturing process, which can be costly in terms of time, money, and resources.
Therefore, it is important to choose a 3D scanner with a high resolution, especially when reverse engineering complex or intricate objects. This will ensure that the resulting model is as accurate and precise as possible, which will ultimately lead to better quality products and reduced manufacturing costs.
How long does it typically take to complete a reverse engineering project using a 3D scanner?
The time it takes to complete a reverse engineering project using a 3D scanner can vary depending on several factors. The complexity of the object being scanned, the accuracy required, and the type of 3D scanner being used can all impact the time it takes to complete the project.
For simple objects with basic geometries, a 3D scan can be completed in as little as a few minutes. However, for more complex objects with intricate details and irregular shapes, the scanning process can take several hours or even days to complete.
Once the scanning is done, the time it takes to process the data and create the CAD model can also vary. Simple objects may take only a few hours to process, while more complex ones can take several days.
It’s essential to note that the time it takes to complete a reverse engineering project using a 3D scanner varies from project to project. It is best to consult with a professional 3D scanning service provider to get a more accurate estimate of the time and cost required for your specific project.
What are the most important factors to consider when choosing a 3D scanner for reverse engineering?
When choosing a 3D scanner for reverse engineering, there are several important factors that need to be considered.
Firstly, the accuracy of the scanner is crucial. The scanner should be able to capture precise details of the object being scanned. The resolution of the scanner should be high enough to capture the intricate details of the object.
Secondly, the type of scanner is also important. There are two types of 3D scanners: contact and non-contact. Contact scanners are best suited for scanning hard surfaces, while non-contact scanners are better for scanning soft surfaces.
Thirdly, the size of the scanner should be considered. The scanner should be able to handle the size of the object being scanned.
Fourthly, the speed of the scanner should also be taken into account. The faster the scanner, the quicker the reverse engineering process will be.
Lastly, the cost of the scanner should be considered. The scanner should be within the budget of the company or individual purchasing it.
Overall, the choice of a 3D scanner for reverse engineering should be based on the specific needs of the user, including accuracy, type, size, speed, and cost.
What is the cost range for the best 3D scanners for reverse engineering, and are there any affordable options available?
The cost of 3D scanners for reverse engineering can vary greatly depending on their features, accuracy, and scanning speed. The best 3D scanners for reverse engineering can range from a few thousand dollars to tens of thousands of dollars. For example, high-end scanners like the Artec Eva 3D scanner can cost around $20,000, while the FARO FocusS 350 can cost around $50,000.
However, there are affordable options available in the market that can still provide good results. For example, the EinScan Pro 2X Plus is a handheld scanner that costs around $7,000 and offers high accuracy and speed. The Shining 3D EinScan-SE is an even more affordable option, priced at around $1,200.
It's important to note that while lower-priced scanners may be more budget-friendly, they may not offer the same level of accuracy or speed as higher-end models. It's important to carefully consider your needs and budget when choosing a 3D scanner for reverse engineering.
What kind of support or training is typically offered by manufacturers of the best 3D scanners for reverse engineering?
Manufacturers of the best 3D scanners for reverse engineering typically offer a range of support and training options to their customers. These can include on-site installation and training, as well as remote support via phone or email. Some manufacturers also offer online training resources, such as video tutorials and user manuals, to help customers get started with their new 3D scanner.
In addition, manufacturers may offer ongoing technical support to help customers troubleshoot any issues they encounter with their scanner. This may include software updates and bug fixes, as well as advice on how to optimize scanning conditions for specific applications.
Overall, the level of support and training offered by 3D scanner manufacturers can vary depending on the specific product and the needs of the customer. However, most reputable manufacturers will strive to provide comprehensive support and training to ensure that their customers are able to get the most out of their 3D scanning technology.
What types of materials can be scanned with the best 3D scanners for reverse engineering?
The best 3D scanners for reverse engineering can scan a wide range of materials including plastics, metals, ceramics, composites, and even organic materials like human body parts. The type of 3D scanner required will depend on the material being scanned, as some materials may require a more powerful laser or different scanning technology to achieve accurate results.
For example, structured light 3D scanners are ideal for scanning objects with complex shapes and geometries, while laser-based scanners are better suited for scanning highly reflective surfaces like metals. Additionally, some 3D scanners are capable of scanning transparent or translucent materials using specialized technologies like phase-shifting.
Overall, the best approach for scanning materials for reverse engineering is to consult with a 3D scanning expert who can recommend the best scanner and scanning methodology based on the specific requirements of the project.
Which 3D scanners are known for producing the most accurate and reliable scans for reverse engineering purposes?
There are several 3D scanners that are known for producing the most accurate and reliable scans for reverse engineering purposes. These scanners have been tried and tested and are widely used in various industries. The first scanner is the Creaform HandySCAN 3D. This scanner is known for its accuracy, speed, and portability, making it ideal for reverse engineering purposes. The second scanner is the Artec Eva. This scanner is known for its high-resolution scans and its ability to capture intricate details. The third scanner is the FARO Edge ScanArm HD. This scanner is known for its precision and accuracy, as well as its ability to capture both tactile and non-tactile data. All of these scanners have their unique features, but they all provide accurate and reliable scans for reverse engineering purposes. It is important to consider the specific needs and requirements of your project before selecting the best scanner for your application.
